Plasma Equilibrium¶

This notebook demonstrates how to load and visualize a plasma equilibrium using the cherab.imas interface.

The example test data was calculated by JINTRAC for an ITER 15 MA H-mode scenario.

[1]:

from cherab.imas.datasets import iter_jintrac
from cherab.imas.plasma import load_equilibrium
from cherab.tools.equilibrium import plot_equilibrium

Retrieve ITER JINTRAC sample data¶

[2]:

path = iter_jintrac()

Downloading file 'iter_scenario_53298_seq1_DD4.nc' from 'doi:10.5281/zenodo.17062699/iter_scenario_53298_seq1_DD4.nc' to '/home/runner/.cache/cherab/imas'.

17:01:39 INFO     Parsing data dictionary version 4.1.1 @dd_zip.py:89

=== Apply patch to fix ===

17:01:39 INFO     Parsing data dictionary version 4.0.0 @dd_zip.py:89
/home/runner/work/imas/imas/src/cherab/imas/datasets/_patch.py:46: RuntimeWarning: The 'get_slice' method is not implemented for the URI '/home/runner/.cache/cherab/imas/iter_scenario_53298_seq1_DD4.nc'. Falling back to 'get' method because the returned IDS contains a single time slice.
  ids_core = get_ids_time_slice(entry, "core_profiles", 0.0)

Load the equilibrium data¶

The equilibrium information is loaded from the IMAS equilibrium IDS.

[3]:

equilibrium = load_equilibrium(path, "r")

/home/runner/work/imas/imas/src/cherab/imas/plasma/equilibrium.py:97: RuntimeWarning: The 'get_slice' method is not implemented for the URI '/home/runner/.cache/cherab/imas/iter_scenario_53298_seq1_DD4_mod.nc'. Falling back to 'get' method because the returned IDS contains a single time slice.
  equilibrium_ids = get_ids_time_slice(

Plot several quantities of the equilibrium¶

Using cherab’s built-in plotting utilities, we can visualize the magnetic equilibrium.

[4]:

plot_equilibrium(equilibrium, detail=True)

Sampling psi...
Plotting summary...
Sampling B-field...
Sampling LCFS interior...
Calculating B-field magnitude...
Sampling q...
Plotting details...

../../_images/notebooks_plasma_1_equilibrium_7_1.png

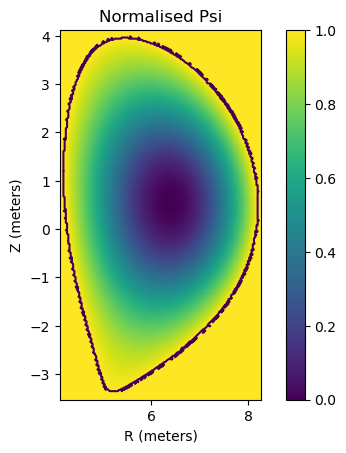

../../_images/notebooks_plasma_1_equilibrium_7_2.png

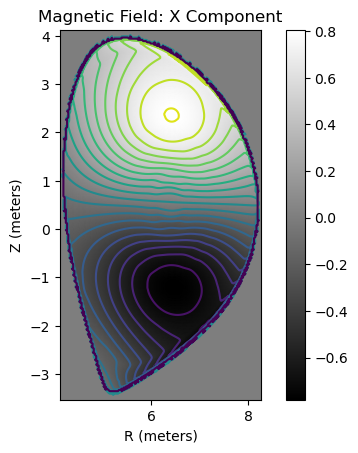

../../_images/notebooks_plasma_1_equilibrium_7_3.png

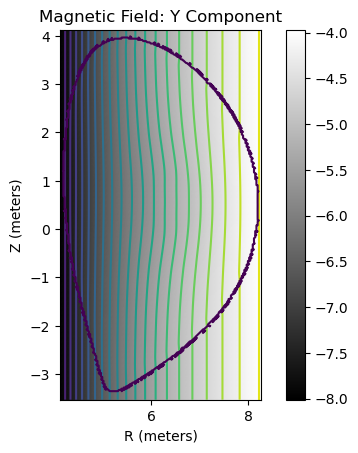

../../_images/notebooks_plasma_1_equilibrium_7_4.png

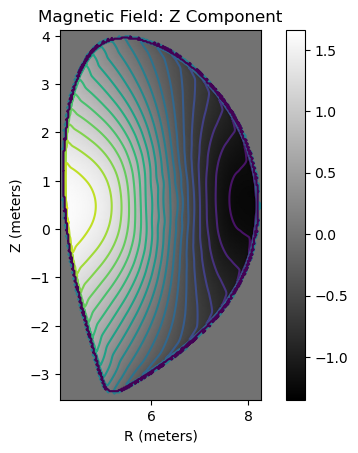

../../_images/notebooks_plasma_1_equilibrium_7_5.png

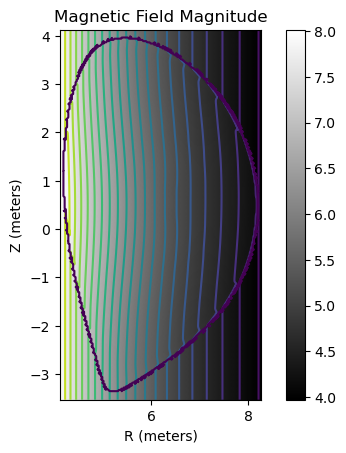

../../_images/notebooks_plasma_1_equilibrium_7_6.png

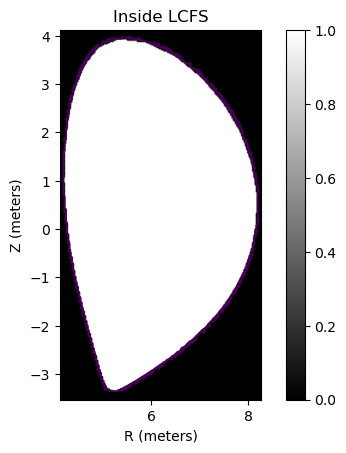

../../_images/notebooks_plasma_1_equilibrium_7_7.png

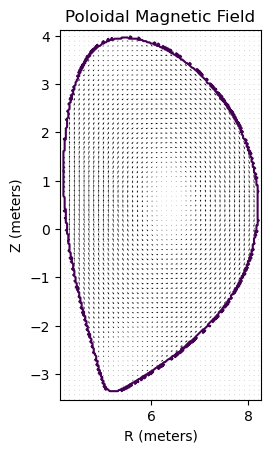

../../_images/notebooks_plasma_1_equilibrium_7_8.png

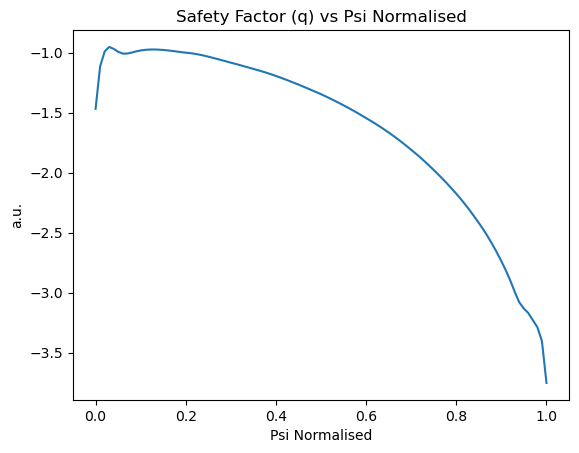

../../_images/notebooks_plasma_1_equilibrium_7_9.png
